Discussion Starter · #1 ·

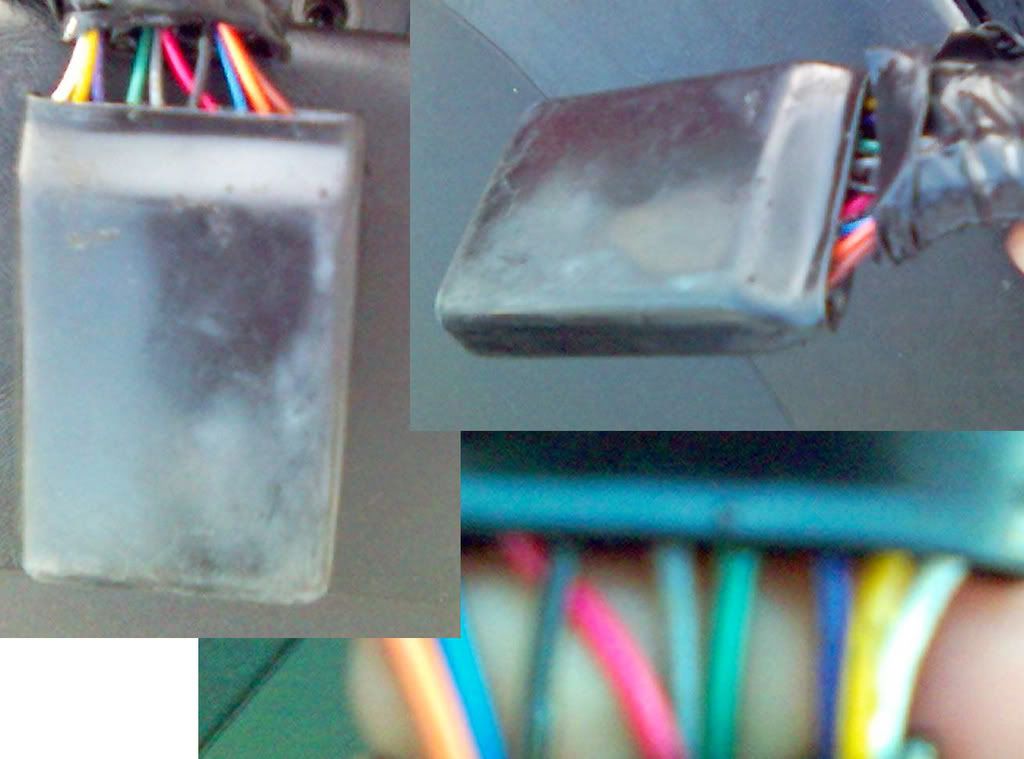

I purchased a 2002 zx12r the bodywork was off from getting painted and it has a under tail with an integrated tail light system, but I can’t figure out how to hook it back up. I don’t know the brand so I can’t find a wiring diagram for the unit. I was wondering if anyone had advice on hooking it up or if anyone can identify it from the pictures. Any help would be great.

The unit has the following wires

Orange
Blue
Black
Red
Green
Gray
Brown
Yellow
Purple
White
